Two rows of ground-mounted solar panels on steel frames in a grass paddock behind a brick farmhouse in the English countryside. Illustrative image, not an SPL installation.

·

Solar Panels

Ground-Mounted Solar Panels for Homes: A UK Guide

Solar panels in the garden instead of on the roof? How ground-mounted systems work in the UK, the 9 square metre planning limit, cabling, and when they make sense.

By

Solar Panels London

·

Last reviewed

A ground-mounted solar system is a set of panels on a frame fixed into the ground, usually in a garden, paddock or field, and wired back to an inverter in the house. Once it is connected it works exactly like a roof system. It makes most sense when the roof is shaded, faces the wrong way, is listed or is due for replacement, and you have open, unshaded ground close enough to the house to run a cable.

In England, a small garden array can often go in without a planning application, but the limit is tight: no more than 9 square metres of panels, which is roughly four typical domestic panels. Anything bigger needs planning permission. The rest of this guide covers when ground mounting is worth it, how it is built, the planning rules as they stand since August 2026, and what drives the cost.

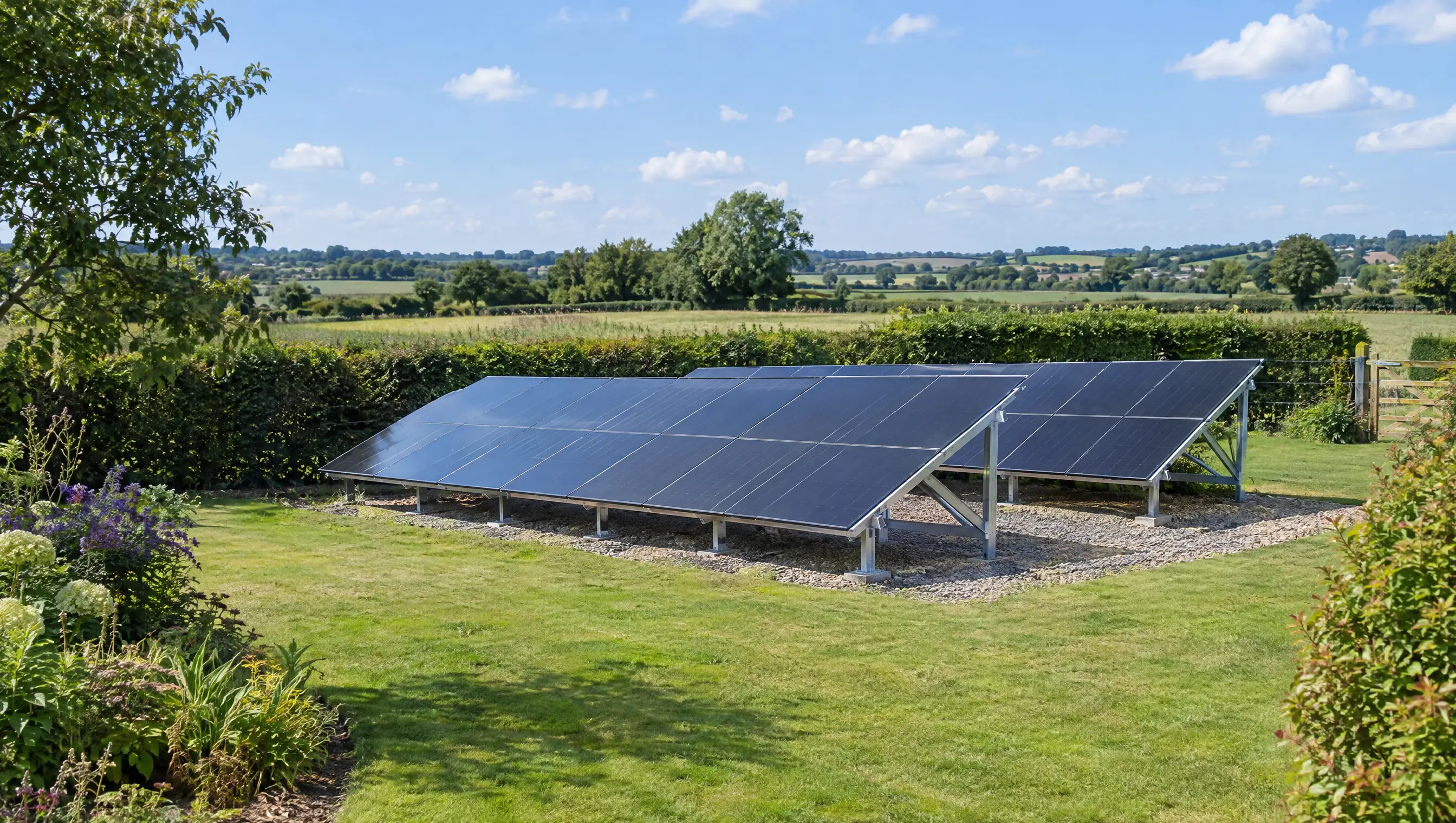

Illustration: a ground-mounted solar array at the end of a large rural garden. Not an SPL installation.

When ground-mounted solar makes sense

In London, most homes go on the roof, because garden space is usually the tighter constraint. Ground mounting earns its place in a narrower set of situations:

  • The roof faces the wrong way or is heavily shaded by trees or neighbouring buildings, and the garden is not.

  • The roof is listed, thatched or otherwise not suitable for fixings.

  • The roof needs replacing soon and you would rather not install on it first.

  • You have a larger plot outside London, such as a paddock or field, and want more capacity than the roof can hold.

It rarely suits a typical London terrace or semi. Even a 9 square metre array takes up a meaningful share of a small garden, and the panels need open sky for most of the day, without fences, sheds, extensions or trees in the way.

How a ground-mounted system is built

The panels sit on an aluminium or galvanised steel frame, tilted towards the sun. The frame is fixed to the ground in one of three ways:

  • Ground screws. Large steel screws driven into the soil. Little digging, quick to fit and removable later. They suit most soils that are not too rocky.

  • Concrete footings or piles. Posts set in concrete. More permanent, and used on soft or uneven ground or for larger frames.

  • Ballast. Weighted bases that sit on the surface without going into it. Used where digging is not possible, for example over buried services or on hardstanding.

The frame is designed for the wind loading at the site, and rows are spaced so that one does not shade the next in winter, when the sun is low. Because the frame is free-standing, the designer can choose the angle and direction rather than accepting whatever the roof gives. Our guide to the best direction and angle for solar panels explains what that is worth.

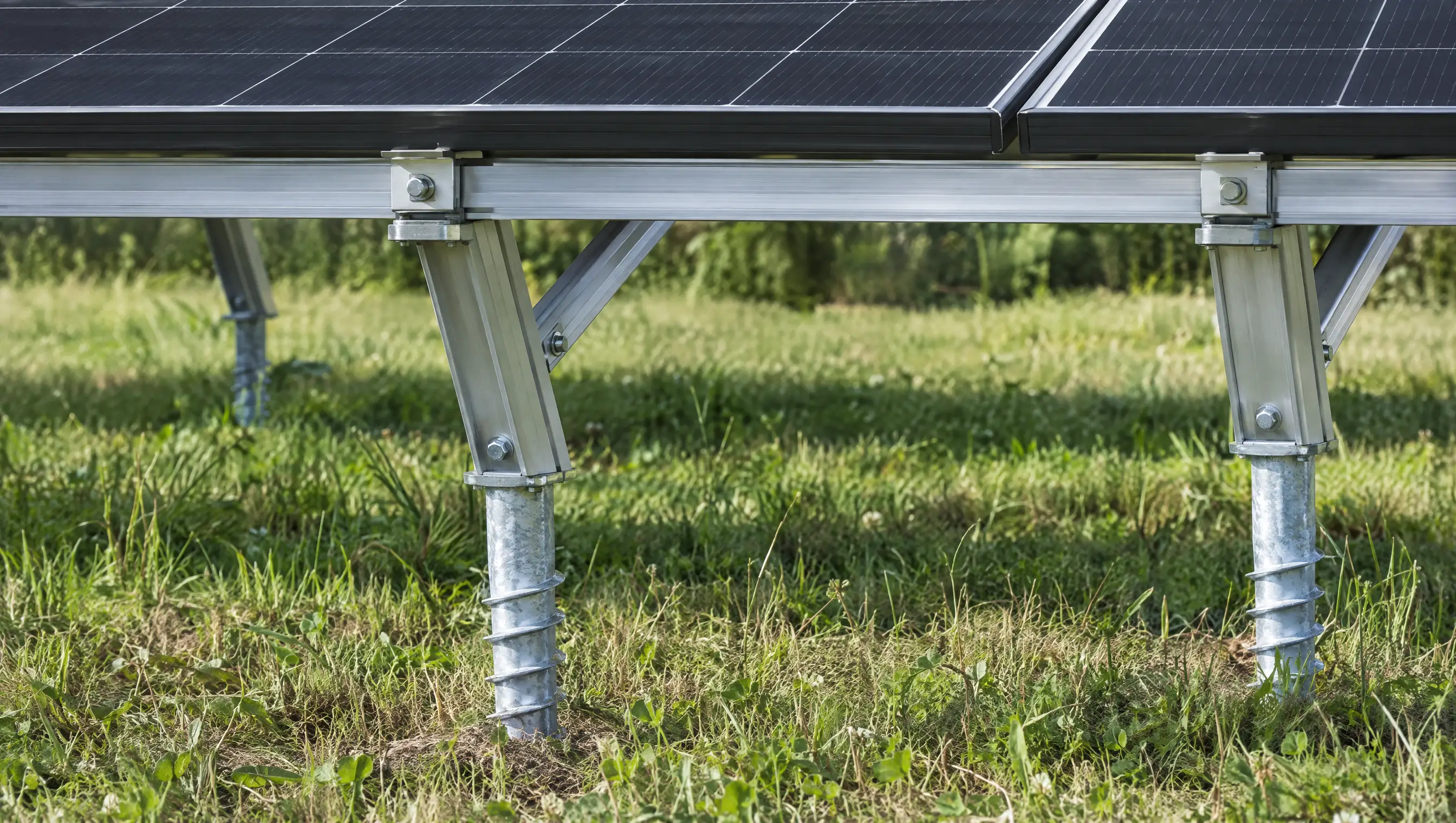

Illustration: ground screws and an aluminium frame supporting a ground-mounted solar array.

Cabling: the part people underestimate

The cable from the array has to reach the house. That normally means a trench with armoured cable laid at a safe depth, warning tape above it, and a route that avoids drains, gas and water pipes and tree roots.

Distance matters. The further the array is from the house, the thicker the cable needs to be to keep losses down, and the longer the trench. A long run across a lawn or patio is often the biggest single difference between a ground-mounted quote and a roof quote. The whole installation is designed and tested to BS 7671, the UK wiring regulations, and certified under MCS like any other system.

Planning permission for ground-mounted solar in England

Free-standing solar in the garden of a house has its own permitted development class, separate from the rules for roofs (Class B of Part 14 of the General Permitted Development Order). It was amended on 27 August 2026. You can usually go ahead without a planning application if all of the following are true:

  • The panels total no more than 9 square metres.

  • No part is more than 4 metres high. That falls to 2 metres within 5 metres of your boundary, and to 1 metre if it is also in front of the main elevation of the house.

  • In a conservation area, no part that is nearer a road than the house is more than 2 metres high.

  • The house is not listed, the array is not within the grounds of a listed building, and the land is not a scheduled monument.

  • In a World Heritage Site, the array is not nearer a road than the house and not within 5 metres of the boundary.

Two situations need a prior approval application to the council before work starts, even inside those limits: an array in a conservation area that is nearer a road than the house, and an array within 5 metres of the boundary on protected land, which includes conservation areas, National Parks and National Landscapes. The council looks at the effect on appearance.

The array must also be sited, as far as practicable, to minimise its effect on the amenity of the area, and removed when it is no longer needed. Anything outside these limits, which includes most arrays of more than about four panels, needs a full planning application. Blocks of flats have their own, stricter rules, and Scotland, Wales and Northern Ireland have separate regimes. Our guide to planning permission for solar in London covers roof installations and the August 2026 changes, and we check the position for your address before quoting.

Grid connection, MCS and export

Once connected, a ground-mounted array is treated the same as a roof array. It needs to be installed to MCS standards if you want export payments under the Smart Export Guarantee, and the local network operator has to be notified or asked for approval first, depending on the size of the system. Our G98 and G99 guide explains which applies. A battery can be added in the same way as with any other system.

Pros and cons compared with a roof system

Advantages

  • Free choice of angle and direction, so a well-sited array can outperform a compromised roof.

  • No fixings through the roof covering and no scaffolding.

  • Easy to reach for cleaning, inspection and repairs.

  • Not limited by roof size, if you have the land and the planning consent for a larger array.

Disadvantages

  • Uses garden or field space that could be used for something else.

  • Trenching and longer cable runs add work compared with a roof.

  • More exposed to shading from trees and hedges as they grow, and to accidental damage or theft if the site is easy to reach.

  • The 9 square metre permitted development limit means most useful-sized arrays need planning permission.

What drives the cost of a ground-mounted system

We do not publish prices, because every system is designed and quoted individually. The things that move a ground-mounted quote are:

  • the number and type of panels;

  • the frame and foundation type, which depends on the ground;

  • the length of the trench and cable run back to the house;

  • the inverter, and whether a battery is included;

  • any planning application or prior approval;

  • access for machinery and materials.

If you have a garage, carport or garden office, panels can often go on its roof instead. Our guide to solar panels on garages, carports and garden buildings explains what we check.

For farms and rural businesses, our guide to solar panels for farms covers barn roofs, ground arrays, planning and rural grid connections.

Getting it assessed

If your roof is not a good fit but you have open ground, a survey will show whether ground mounting is worthwhile and which planning route applies. We cover London and roughly 50 miles around it. Request a solar and battery quotation.

Planning rules last checked 9 November 2026 against Schedule 2, Part 14, Class B of the General Permitted Development (England) Order 2015, as amended by SI 2026/896.
